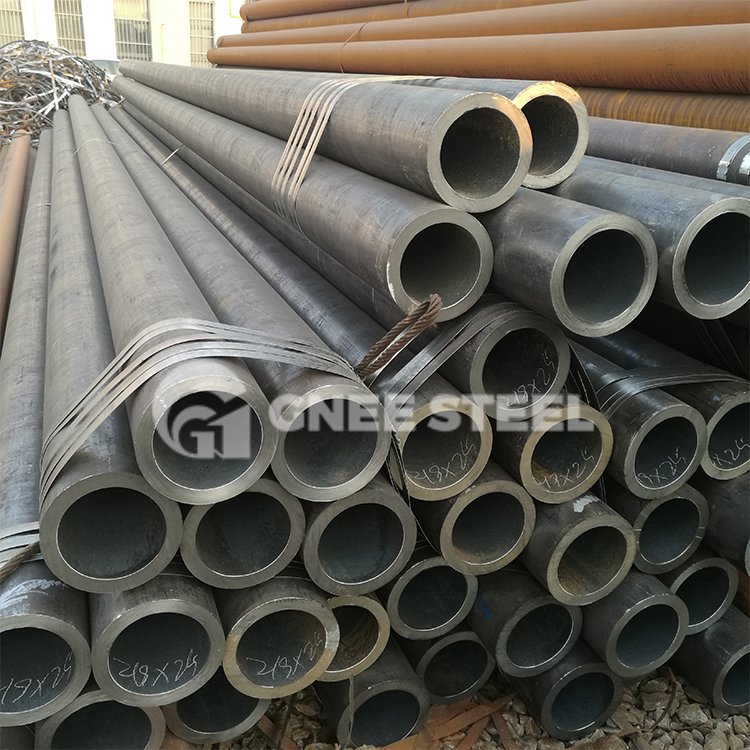

EN10297-1 is a standard for alloy and non-alloy seamless round steel pipes. Steel grades covered by EN 10297-1 41Cr4, 25CrMo4, 30CrMo4, 34CrMo4, 42CrMo4, 36CrNiMo4, 30CrNiMo4, 41NiCrMo7-3-2 is a very common general medium carbon Cr-Mo steel grade.
OD: 26.9-610mm
WT: 2.3-100mm
Length: 3000-12000mm
Grade: 41Cr4, 25CrMo4, 30CrMo4, 34CrMo4, 42CrMo4, 36CrNiMo4, 30CrNiMo4, 41NiCrMo7-3-2 which are covered by EN 10297-1

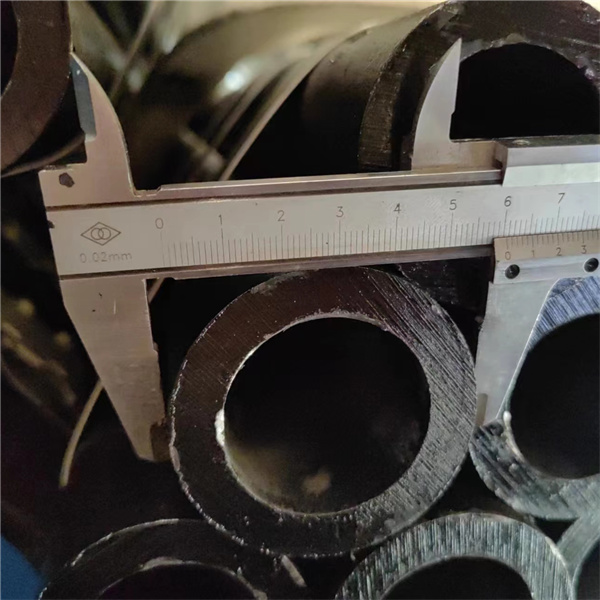

Dimensional Tolerances Of EN 10297-1 Seamless Circular Steel Tubes
OD/Wall tolerance
| Execution | Size Range | OD Tolerance | Wall tolerance |
|---|---|---|---|
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall – 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall – 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 – 80 mmOD > 80 Wall Thickness< 6 mm Wall Thickness6 – 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm |
